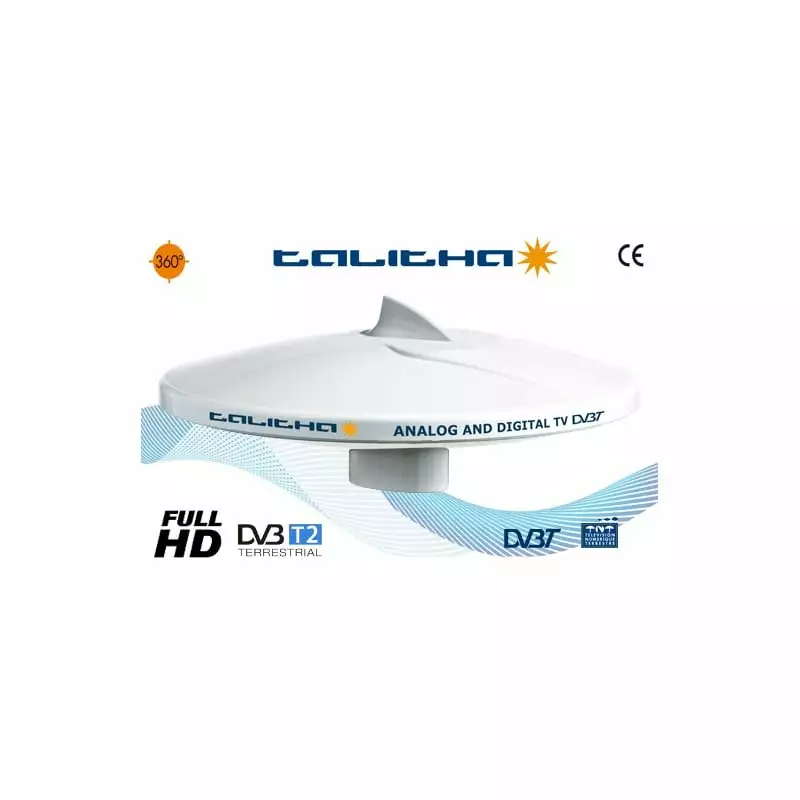

Glomex TALITHA – Omnidirectional DVBT TV Antenna, 24cm Diam.

GLOMEX TALITHA V9125AGC – OMNIDIRECTIONAL TV ANTENNA WITH AUTOMATIC GAIN CONTROL – 15 DB – DIAMETER 240 MM (10’’) – 50023/14 AGC AMPLIFIER – 20 M (66′) COAXIAL CABLE – V9144 CONNECTOR

Talitha evolves in Talitha AGC to make your life easier and more comfortable with the new and innovative automatic gain control amplifier.
Thanks to the new amplifier you have only to turn on the TV, stay comfortably seated on the sofa and enjoy your favourite programs;
Talitha AGC (diameter: 25 cm / 10″) will adjust by itself the gain of the TV signal to ensure the best possible reception of television broadcasts.
With conventional amplifiers, in fact, you have to manually adjust the TV signal
gain by lowering the amplification when the signal is high and by increasing the amplification
when the boat is at sea and far from the TV transmitter.
With the new Talitha AGC, everything will happen automatically and the innovative amplifier
can be placed in a hidden location inside the boat.

This innovation increases the Nashira key points that have allowed Talitha to be the best-selling marine
DVB-T and DVB-T2 TV antenna in the world for more than 30 years: its always appreciated essential style,
aerodynamic lines with the “shark fin” (55mm/2.2” high) for receiving the vertically
polarized TV signals, reinforced base to ensure maximum stability of the antenna in any condition of navigation,
compact size (370 mm/14” diameter) and high quality construction materials.

If matched with a 2-way splitter (code: V9147, optional) installed between the antenna and the amplifier,
it can also receive AM-FM radio frequencies.

Specifications



ANTENNA DIAMETER	250 mm (10”)
ANTENNA HEIGHT	120 mm (5”) [151 mm (5.9″) with shark fin]
BASE DIAMETER	25 mm (16”)
ANTENNA WEIGHT	350 g (12,34 oz) [405 g (14,29 oz) with shark fin]
RADOME MATERIAL	U.V. resistant ASA
ANGLE OF RECEPTION	360°
POLARIZATION	Horizontal / Vertical
IMPEDANCE	75 ohms
FREQUENCY RANGE	40/890 MHz
GAIN AVERAGE	26 dB
NOISE FACTOR	2,2 dB
POWER CONSUPTION	20 mA
POWER SUPPLY	12/24 Vdc
ANTENNA AMPL/BY PASS	No
ADJUSTABLE GAIN	Yes
TV SET MAX	2
TERMINATION	F female
CONNECTOR SUPPLIED	F male gold plated connector (V9144)
A/B SWITCH	No
