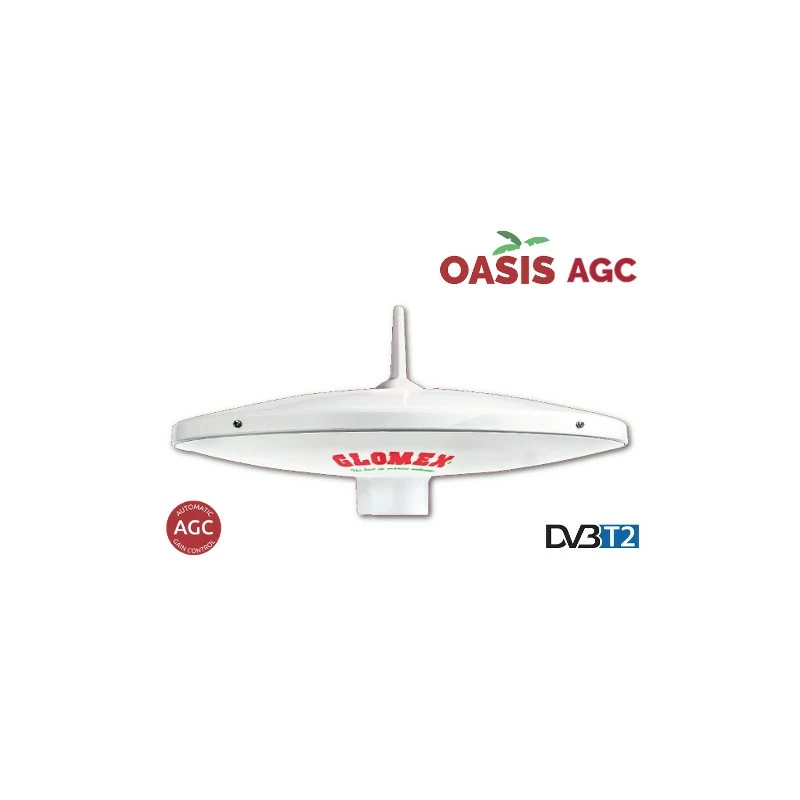

Glomex OASIS² – OMNIDIRECTIONAL DVBT TV ANTENNA FOR MOTORHOME – 25CM DIAM

Oasis AGC makes your life easier and more comfortable with the new and innovative automatic gain control amplifier. Thanks to the new amplifier you have only to turn on the TV, stay comfortably seated and enjoy your favourite FULL HD programs; Oasis AGC (diameter: 250mm / 10”) will adjust by itself the gain of the TV signal to ensure the best possible reception of television broadcasts.

With conventional amplifiers, in fact, you have to manually adjust the TV signal gain by lowering the amplification when the signal is high and by increasing the amplification when you are far from the TV transmitter. With the new Oasis AGC, everything will happen automatically and the innovative amplifier can be placed in a hidden location inside the RV. Oasis AGC is easy to install and provided with all necessary accessories for installation: support for roof installation, 5m (16.5’) coaxial cable, 1,5M (5’) TV cable and AGC amplifier. Moreover, Glomex offers a wide range of optional accessories.

SUPPLIED ACCESSORIES:

AUTOMATIC AMPLIFIER

5 M (16,4′) COAXIAL CABLE to connect the antenna with the amplifier

1,5 M (5′) COAXIAL CABLE to connect the amplifier to the TV / Decoder

NYLON ROOF MOUNT (CODE T198) – 150x150mm

TECHNICAL SPECIFICATIONS



ANTENNA DIMENSIONS	250 x 205 mm (10×8”)
BASE DIAMETER	25 mm (1”)
ANTENNA WEIGHT	350g (12,34oz)
ANGLE OF RECEPTION	360°
FREQUENCY RANGE	40/890 MHz
GAIN AVERAGE	26 dB
NOISE FACTOR	2,2 dB
IMPEDANCE	75 ohms
AMPLIFIER ADJUSTABLE GAIN	Yes
AMPLIFIER BY-PASS	No
POWER CONSUMPTION	20 mA
POWER SUPPLY	12/24 Vdc
TV SET MAX	2
RADOME TYPE	U.V. resistant ASA
TERMINATION	F connector
POLARIZATION	Horizontal and Vertical

OASIS AGC – OMNIDIRECTIONAL TV ANTENNA WITH AUTOMATIC GAIN CONTROL AMPLIFIER – DIAMETER 250 MM (10’’) – 5 M (16′) COAXIAL CABLE
