Glomex MARS 4skew – Satellite TV Antenna With Automatic Skew, 4 Outputs, 60cm – FULL HD DVB-S2

GLOMEX SATELLITE TV ANTENNAS
NEW MODEL WITH USB CONTROL UNIT FOR AN EASIER AND FASTER SOFTWARE UPDATE

Glomex Satellite TV antennas are refurbished in technology and performance: the new HPD (High Performance Dish) parabolic dishes with flanged LNB, combined with the innovative software for signal research, allow the compensation of quality losses due to satellite multiplication on the terrestrial orbit and to transmission on same frequency.

The geostationary satellites are located on the orbit close to the equator and are aligned with the terrestrial axis. Therefore, according to any geographical position corresponding to the equator line, all satellites appear as shifted to the East or to the West of their own South, as if they were tilted. In this case the polarizations of such satellites are no more horizontal or vertical according to their own position, but tilted. Therefore, if the frequency converter (LNB) does not turn the same number of degrees of inclination of the satellite, the polarizations will result in misalignment.

Glomex Satellite TV antennas have skew option is precisely a compensation system proposed by Glomex which, acknowledging the geographic position, acts directly on the LNB by changing automatically the inclination. In this way the polarization is optimized and the best possible signal quality is achieved.

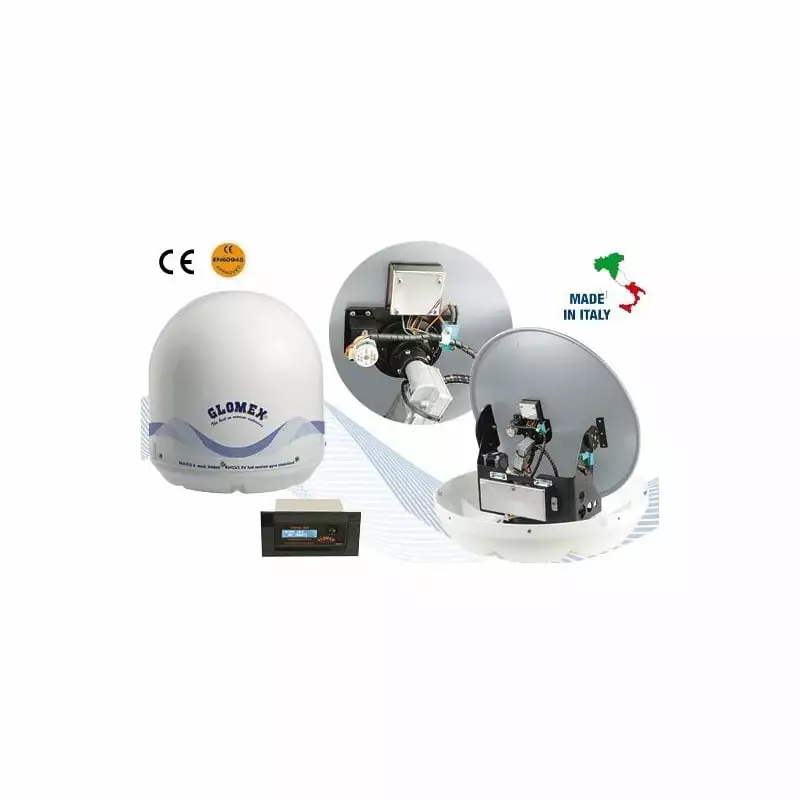

Mars 4 SKEW DVB-S2 is the best product in the Glomex TV satellite antenna range. Identical in dimensions and features to Mars 4 (dish diameter 600 mm/24” and the possibility to connect up to 16 independent decoders on the same boat) it’s equipped with the skew option which offers the best quality in satellite TV signals reception. Mars 4 SKEW is also equipped with an efficient compensation system (for boat roll and pitch) by means of electronic gyro-stabilizers (EGS), with a multi coaxial rotating joint (MCRJ) and with a multi-switch box for the connection of more independent decoders (4 outputs for multi-switch, up to a maximum quantity of 16 for antenna). The antenna can turn infinitely on its axis, since there is no coaxial cable wrapping (SCC), without interrupting the TV signal. Mars 4 SKEW is equipped with a control unit that can be embedded in the electronic panel on board. Eight satellites are already precharged on the control unit, and they’re recognized by the NIT system (Network Identification Table). Mars 4 SKEW is the optimal choice to watch TV during good or bad weather conditions, either when cruising or at anchor. It is also ready for future updating.

SUPPLIED ACCESSORIES:

• 8 SAT CONTROL UNIT: FOR THE CHOICE OF THÉ 8 SATELLITES PLEASE CONTACT US [email protected] – PRELOADED SATELLITES : HOTBIRD 13°E, ASTRA 1 19,2°E, ASTRA 2 28,2°E, ASTRA 3 23,5°E, EUROBIRD 9°E, SIRIUS 4,8°E, THOR 1°W and HISPARAT 30°W
• 10 M (33′) COAXIAL CABLE
• 1,5 M (5′) COAXIAL CABLE
• DC/DC ADAPTOR
• MULTISWITCH V9191
• HIGH THICKNESS SYNTHETIC RUBBER GASKET

Specifications



TECHNOLOGY	DVB-S2
ANTENNA DISH DIAMETER	600 mm (24”)
RADOME DIMENSIONS	660 x 660 mm (26×26”)
ANTENNA WEIGHT	15,5 kg (33,07 lb)
TRACKING RATE	50° sec
ANTENNA GAIN	35,3 dB (12 GHz)
DISH TYPE	Prime Focus + HPD
POLARIZATION	Linear (H + V)
LNB FREQUENBCY RANGE	10,7 – 12,75 GHz LNB universal
RADOME TYPE	U.V. resistant
POWER REQUIREMENT	12/24 Vdc (2 Ah)
OPERATING TEMPERATURE RANGE	-20° +55°
AZIMUTH TURN RANGE	Unlimited
FULL ELEVATION RANGE	15° -90°
TYPE OF STABILIZATION	gyro on 2 axis + 3° axis by interpolation
SATELLITE IDENTIFICATION	NIT (Network Information Table)
MIN EIRP	47 dBW
FUTURE UPGRADES READY	Yes
DECODER OUTPUT	4 outputs to multiswitch (max 16 outputs)
AUTOSKEW	Yes
CONTROL UNIT	8 satellites loaded



Downloads

DOWNLOAD THE USER MANUAL

Glomex Satellite TV – MARS 4skew are refurbished in technology and performance with the introduction of DVB-S2 technology
the Second Generation of Digital Video Broadcasting.
This new technology allows to receive the SAT TV signal in perfect quality and to watch all FULL HD TV channels.
