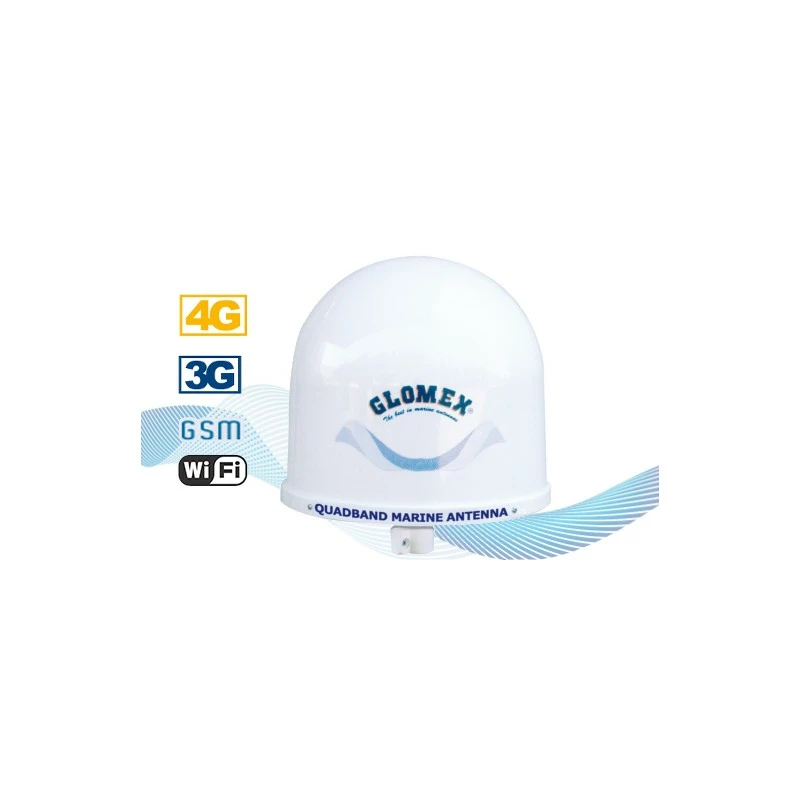

Glomex INTERNET ANTENNA 3G/4G WIFI – OMNIDIRECTIONAL

IT2000 is the new Omni-directional Quad-band antenna (LTE, 3G/UMTS, Wi-Fi and GSM) specifically developed to be connected quickly and easily to the latest devices on the market.

Thanks to its many features, IT2000 is the indispensable element for your boat to stay connected with the mainland. This high gain and high performing antenna is protected from the elements thanks to the ASA radome made with innovative anti-yellowing materials, and it’s identical in shape and size to the TV antenna radome Altair and VHF antenna RA124; this last aspect thus offers the possibility of matching the three antennas and maintaining a balanced and harmonious look on the boat.

IT2000 is a passive antenna. So it must be link to a router (not included). The cable is not included.

N.B. The choice of the cable you must use depends by your installation. Anyway, the cable must be a low
loss cable for the frequency range from 700 MHz to 3 GHz. The cable must be fitted with a N male connector.

Router not included.

Technical Specifications

ANTENNA DIAMETER: 250 mm (10”)

ANTENNA HEIGHT: 300 mm (12”)

BASE DIAMETER: 500 g (1.1 lb)

RADOME MATERIAL: U.V resistan ASA

POLARIZATION: Vertical

IMPEDANCE: 50 ohms

FREQUENCY RANGE: 690/960 MHz | 1710/2700 MHz

GAIN AVERAGE: 3 dB | 5 dBi

VSWR: ? 1.5 | ? 1.2

DC GROUND:  Yes

TERMINATION: N female

MAX INPUT POWER: 50 W



PRODUCT CODE	IT2000
PRODUCT EAN	8051566303199
WARRANTY	2 YEARS
INSTALLATION	Motor boat, Sail Boat, Yacht
TECHNICAL FEATURES	ANTENNA DIAMETER 250 mm (10”) ANTENNA HEIGHT 300 mm (12”) BASE DIAMETER 500 g (1.1 lb) RADOME MATERIAL U.V resistan ASA POLARIZATION Vertical IMPEDANCE 50 nbsp; ohms FREQUENCY RANGE 690 960 MHz 1710 2700 MHz GAIN AVERAGE 3 dB 5 dBi VSWR ? 1.5 nbsp; ? 1.2 nbsp; DC GROUND Yes TERMINATION N female MAX INPUT POWER 50 W

3G – 4G – WI/FI – GSM OMNIDIRECTIONAL INTERNET ANTENNA ONLY.
