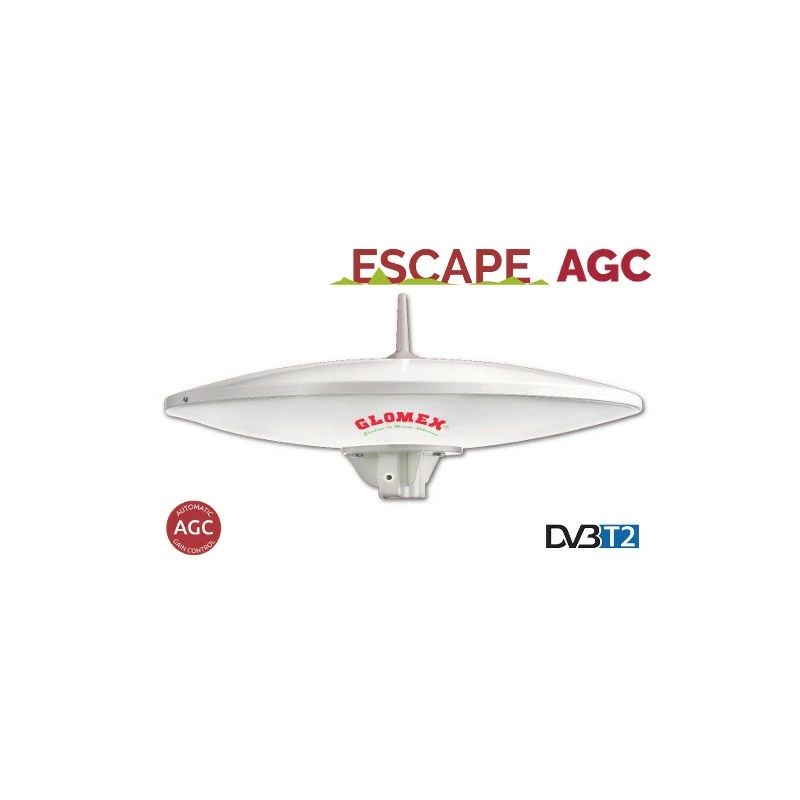

Glomex ESCAPE AGC – 37CM (10”) FULL HD TV ANTENNA WITH AUTOMATIC GAIN CONTROL AMPLIFIER

The extended 370mm (14”) size allows better reception of the HD signal.

Escape AGC makes your life easier and more comfortable with the new and innovative automatic gain control amplifier.

Thanks to the new amplifier you have only to turn on the TV, stay comfortably seated and enjoy your favourite FULL HD programs; Escape AGC (diameter: 370mm/14”) will adjust by itself the gain of the TV signal to ensure the best possible reception of television broadcasts.

With conventional amplifiers, in fact, you have to manually adjust the TV signal gain by lowering the amplification when the signal is high and by increasing the amplification when you are far from the TV transmitter. With the new Escapes AGC, everything will happen automatically and the innovative amplifier can be placed in a hidden location inside the RV. Escape AGC is easy to install and provided with all necessary accessories for installation: support for roof installation, 5m (16.5’) coaxial cable, 1,5m (5’) TV cable and AGC amplifier.

SUPPLIED ACCESSORIES:

AUTOMATIC GAIN CONTROL AMPLIFIER (50023/14)AMPLIFIER

5 M (16,4′) COAXIAL CABLE to connect the antenna with the amplifier

1,5 M (5′) COAXIAL CABLE to connect the amplifier to the TV / Decoder

NYLON ROOF MOUNT (CODE T198) – 150x150mm

TECHNICAL SPECIFICATIONS



ANTENNA DIMENSIONS	370 x 270 mm (14×10”)
BASE DIAMETER	25 mm (1”)
ANTENNA WEIGHT	900g (31,74oz)
ANGLE OF RECEPTION	360°
FREQUENCY RANGE	87,5/774 MHz
GAIN AVERAGE	20 dB
NOISE FACTOR	2,1 dB
IMPEDANCE	75 ohms
AMPLIFIER ADJUSTABLE GAIN	Automatic
POWER CONSUMPTION	20 mA
POWER SUPPLY	12/24 Vdc
TV SET MAX	2
RADOME TYPE	U.V. resistant ASA
TERMINATION	F connector
POLARIZATION	Horizontal and Vertical



PRODUCT CODE	C3779AGC
PRODUCT EAN	8051566302192
WARRANTY	LIFETIME
INSTALLATION	Camion Truck, Camper Caravan, Pullman Bus
TECHNICAL FEATURES	ANTENNA DIMENSIONS (diameter x height): 370 x 270 mm (14×10”) BASE DIAMETER: 25 mm (1”) ANTENNA WEIGHT: 900g (31,74oz) ANGLE OF RECEPTION: 360° FREQUENCY RANGE: 40 890 MHz GAIN AVERAGE: 27,5 dB NOISE FACTOR: 2,1 dB IMPEDANCE: 75 ohms AMPLIFIER ADJUSTABLE GAIN: Yes AMPLIFIER BY-PASS: No POWER CONSUMPTION: 20 mA POWER SUPPLY: 12 24 Vdc TV SET MAX: 2 RADOME TYPE: U.V. resistant ASA TERMINATION: F connector POLARIZATION: Horizontal and Vertical

ESCAPE AGC – OMNIDIRECTIONAL TV ANTENNA WITH AUTOMATIC GAIN CONTROL AMPLIFIER – DIAMETER 370 MM (14’’)- 5 M (16′) COAXIAL CABLE
