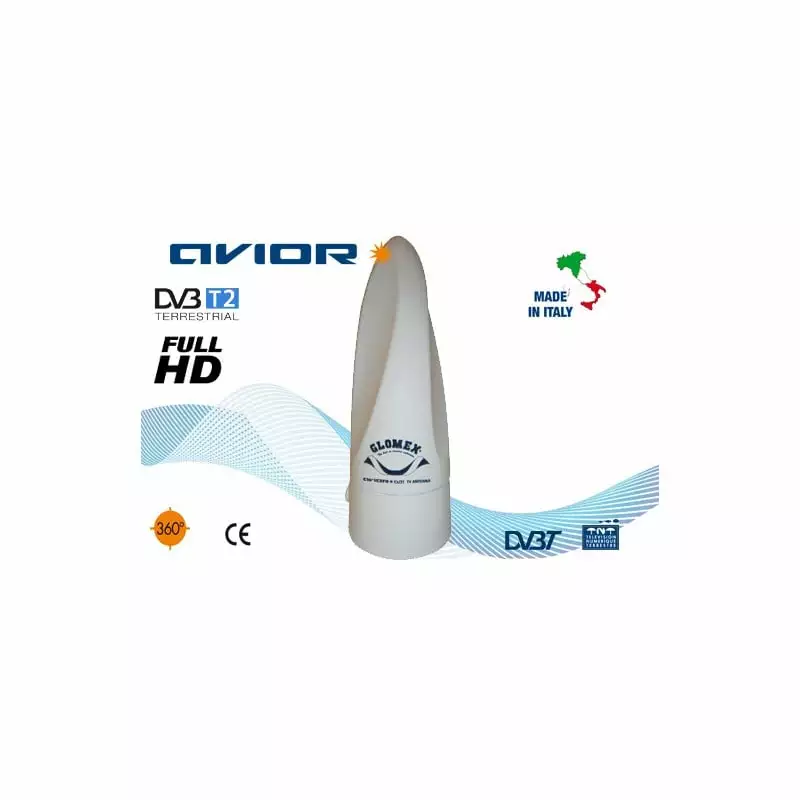

Glomex AVIOR – Compact Omnidirectional DVBT TV Antenna

The new amplifier allows Avior to have an increase in the gain and to receive vertically and horizontally polarized TV signals coming from more directions at the same time. The inner amplifier, coupled to the power inserter with 2 independent outputs for TV and radio (V9114OI-FM), allows the reception of VHF and UHF and FM frequencies with a single antenna. Avior can be installed on any kind of boat, whether sailboat or motorboat, and can be matched to the VHF RA121 antenna.

Specifications



ANTENNA DIAMETER	100 mm (4”)
ANTENNA HEIGHT	210 mm (8”)
BASE DIAMETER	25 mm (1”)
ANTENNA WEIGHT	250 g (8,81 oz)
RADOME MATERIAL	U.V. resistant ASA
ANGLE OF RECEPTION	360°
POLARIZATION	Horizontal / Vertical
IMPEDANCE	75 ohms
FREQUENCY RANGE	40/890 MHz
GAIN AVERAGE	24,5 dB
NOISE FACTOR	1,7 dB
POWER CONSUPTION	20 mA
POWER SUPPLY	12 Vdc
TV SET MAX	1
TERMINATION	F female
CONNECTOR SUPPLIED	F male gold plated connector (V9144)

Glomex Avior is the TV/RADIO FM Omnidirectional antenna in the Glomex range characterized by very compact dimensions (diameter 100 mm/4”and height 210 mm/8”). It enables the user to watch TV programs broadcasted with analog and digital terrestrial system and to listen the radio.
