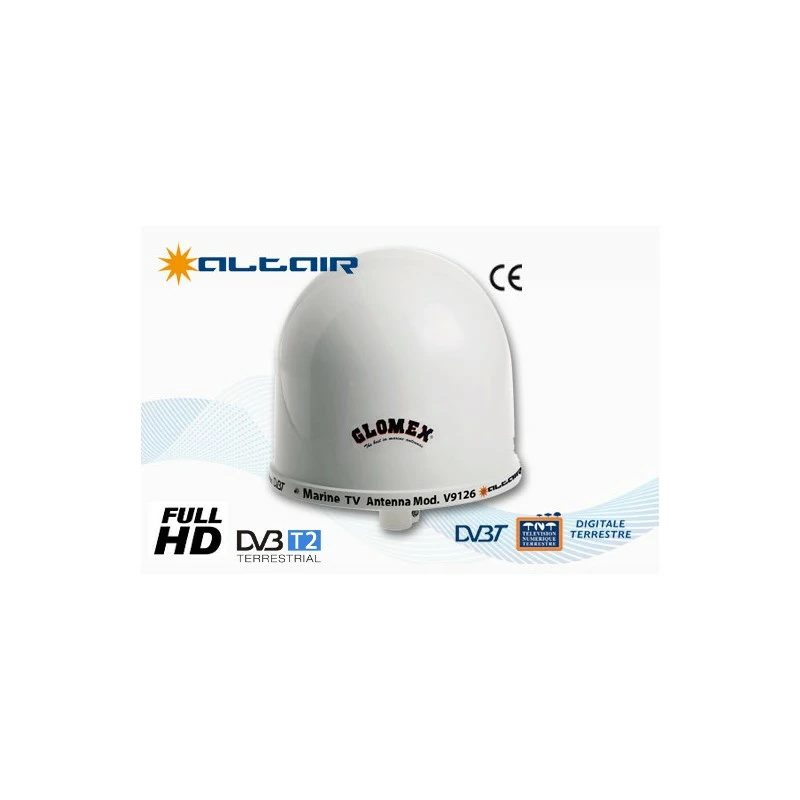

Glomex ALTAIR AGC – ANTENNA MARINE TV OMNIDIRECTIONAL – 25cm

Altair is the omni-directional TV antenna ensuring high performance in signal reception with both polarizations: horizontal and vertical.

In fact Altair, is different to the other omni-directional antennas, in that it has a Radome with dimensions (diameter 250 mm/10”, height 300 mm/12”) allowing the installation of the vertical reception component inside.

Altair is equipped with the automatic gain control amplifier (50023/14) In order to keep a balanced look of your boat, Altair can be matched to the VHF RA124, as they are identical in shape and size.

SUPPLIED ACCESSORIES:

• 50023/14 AMPLIFIER
• 20 M (66′) COAXIAL CABLE to connect the antenna with the amplifier
• 1,5 M (5′) SET CORD to connect the amplifier to the TV / Decoder
• NYLON MOUNT

TECHNICAL SPECIFICATIONS



ANTENNA DIAMETER	250 mm (10”)
ANTENNA HEIGHT	300 mm (12”)
BASE DIAMETER	25 mm (1”)
ANTENNA WEIGHT	430 g (15,17 oz)
RADOME MATERIAL	U.V. resistant ASA
ANGLE OF RECEPTION	360°
POLARIZATION	Horizontal / Vertical
IMPEDANCE	75 ohms
FREQUENCY RANGE	40/890 MHz
GAIN AVERAGE	27,5 dB
NOISE FACTOR	2,1 dB
POWER CONSUPTION	25 mA
POWER SUPPLY	12/24 Vdc
ADJUSTABLE GAIN	AUTOMATIC
TV SET MAX	2
TERMINATION	F female
CONNECTOR SUPPLIED	F male gold plated connector (V9144)



PRODUCT CODE	V9126AGC
PRODUCT EAN	8051566300259
WARRANTY	LIFETIME
INSTALLATION	Motor Boat, Sail Boat, R.I.B., Yacht, River Boat
TECHNICAL FEATURES	ANTENNA DIAMETER: 250 mm (10”) ANTENNA HEIGHT: 300 mm (12”) BASE DIAMETER: 25 mm (1”) ANTENNA WEIGHT: 430 g (15,17 oz) RADOME MATERIAL: U.V. resistant ASA ANGLE OF RECEPTION: 360° POLARIZATION: Horizontal Vertical IMPEDANCE: 75 ohms FREQUENCY RANGE: 40 890 MHz GAIN AVERAGE: 27,5 dB NOISE FACTOR: 2,1 dB POWER CONSUPTION: 25 mA POWER SUPPLY: 12 24 Vdc ANTENNA AMPL BY PASS: Yes ADJUSTABLE GAIN: Yes TV SET MAX: 2 TERMINATION: F female CONNECTOR SUPPLIED: F male gold plated connector (V9144) A B SWITCH: No

ALTAIR AGC – OMNIDIRECTIONAL TV ANTENNA – 27,5 DB – DIAMETER 250 MM (10’’) – 50023/14 AUTOMATIC GAIN CONTROL AMPLIFIER – 20 M (66′) COAXIAL CABLE – V9144 CONNECTOR.
