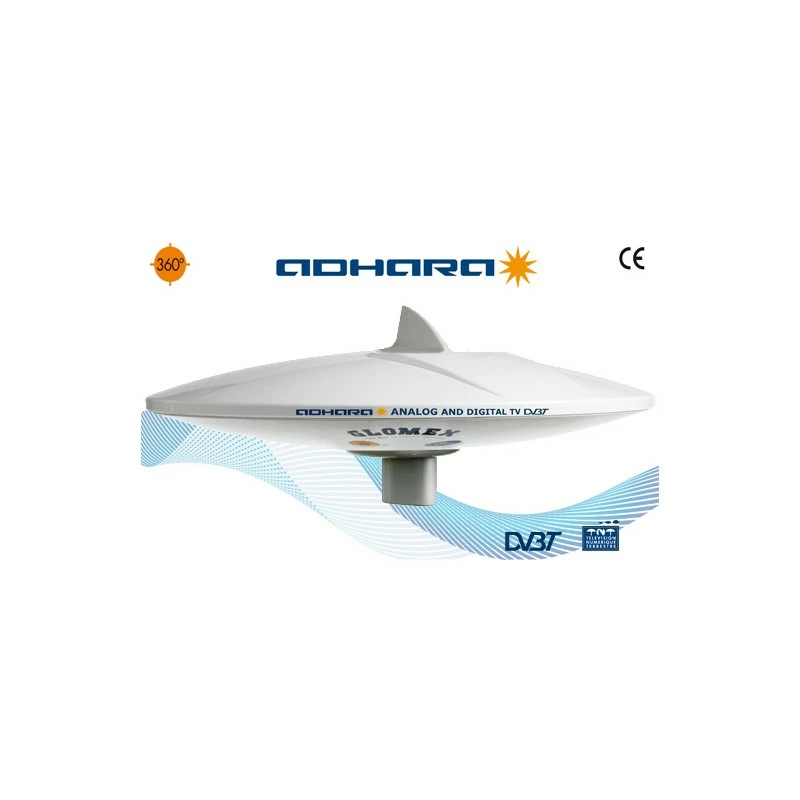

Glomex ADHARA AGC – OMNIDIRECTIONAL DVB-T2 TV ANTENNA WITH 6 OUTPUTS AND AGC AMPLIFIER

The new ADHARA AGC is the Omni directional TV antenna renewed in design and performance keeping the essential style, compact dimensions (diameter 370mm / 14”) and high quality materials, developed to meet the requirements of large yachts and cargo ships.

Adhara is distinguished by an innovative design based to the new pinnacle as a “shark fin” (high 55mm /2,2”), for receiving vertically polarized TV signals, that fits perfectly on the new radome with aerodynamic lines. Thanks to vertical pinnacle inside the “shark fin”, Adhara can receive analog or digital TV signals polarized both horizontally and vertically.


Adhara is equipped with 2 amplifiers: the 50023/14 amplifier with AUTOMATIC GAIN CONTROL AMPLIFIER, and the 50022/10 is both amplifier and splitter allowing the signal to be directed to several TVs whilst retaining a high quality image.

SUPPLIED ACCESSORIES:

50023/14 AMPLIFIER

50022/10 6 WAY LINE AMPLIFIER

20 M (66′) COAXIAL CABLE

25 M (82′) COAXIAL CABLE – 2 PCS

V9144  F-MALE GOLD PLATED CONNECTORS (11 PCS)

Technical Specifications



ANTENNA DIAMETER	370 mm (14”)
ANTENNA HEIGHT	185 mm (7′) [240 mm (9,5″) with shark fin]
BASE DIAMETER	25 mm (1”)
ANTENNA WEIGHT	900 g (31.74 oz) [975 g (34,39 oz) with shark fin]
RADOME MATERIAL	U.V. resistant ASA
ANGLE OF RECEPTION	360°
POLARIZATION	Horizontal / Vertical
IMPEDANCE	75 ohms
FREQUENCY RANGE	40/890 MHz
GAIN AVERAGE	36 dB
NOISE FACTOR	2,1 dB
POWER CONSUPTION	120 mA
POWER SUPPLY	12 Vdc
ADJUSTABLE GAIN	AUTOMATIC
TV SET MAX	6
TERMINATION	F female
CONNECTOR SUPPLIED	F male gold plated connector (V9144)



PRODUCT CODE	V9150AGC/DAB20-k
PRODUCT EAN	8051566302352
WARRANTY	LIFETIME
INSTALLATION	Motor Boat, Sail Boat, Commercial Ship, Yacht, River Boat
TECHNICAL FEATURES	ANTENNA DIAMETER 370 mm (14”) ANTENNA HEIGHT 185 mm (7′) [240 mm (9,5″) with shark fin] BASE DIAMETER 25 mm (1”) ANTENNA WEIGHT 900 g (31.74 oz) [975 g (34,39 oz) with shark fin] RADOME MATERIAL U.V. resistant ASA ANGLE OF RECEPTION 360° POLARIZATION Horizontal Vertical IMPEDANCE 75 ohms FREQUENCY RANGE 40 890 MHz GAIN AVERAGE 36 dB NOISE FACTOR 2,1 dB POWER CONSUPTION 120 mA POWER SUPPLY 12 Vdc ANTENNA AMPL BY PASS No ADJUSTABLE GAIN Yes TV SET MAX 6 TERMINATION F female CONNECTOR SUPPLIED F male gold plated connector (V9144) A B SWITCH Yes

V9150AGC – OMNIDIRECTIONAL TV ANTENNA WITH AUTOMATIC GAIN CONTROL AMPLIFIER – 36 DB – DIAMETER 370 MM (14’’) – HORIZONTAL AND VERTICAL POLARIZATION – 50022/10 AND 50023/14 AMPLIFIERS – 70 M (230′) COAXIAL CABLE – V9144 CONNECTOR
